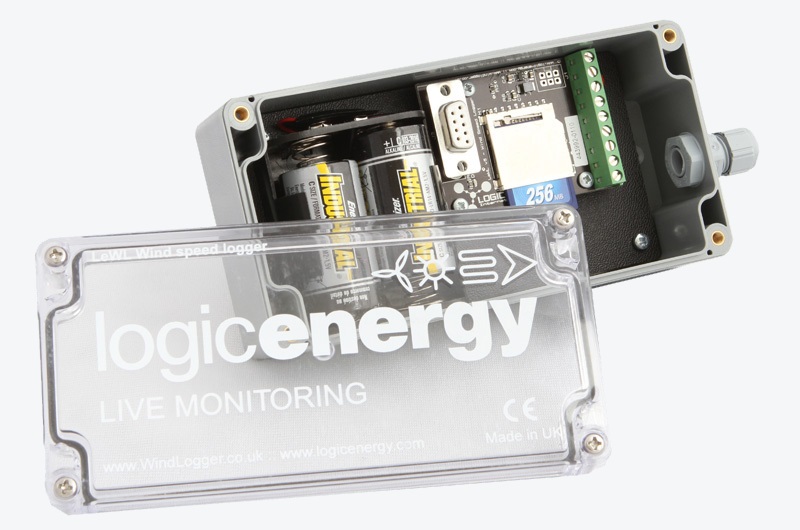

SD Data Logger By Logic Energy





sd data logger

Features

This battery-powered data logger lets you capture wind speed, wind direction, and temperature data on an SD card for analysis in a spreadsheet. User settable data storage intervals are 1 minute or 10 minutes (fixed). Truly easy to set up and use. Accepts one or two wind speed sensors (Inspeed Vortex or Davis), and one wind direction sensor. For wind direction and speed, use Davis wind sensors. If you just want wind speed, use one or two Inspeed Vortex Wind Speed Sensor(s).

(For more information see www.inspeed.com)


     SDDLGIC






 Specifications

  SENSOR TYPE  Wind speed: Inspeed Vortex or Davis
 Wind direction: Davis only (wind speed and direction)
  DATA STORAGE

 Data stored to an SD card in .csv format
 NOTE: SD card reader not included!
 Data Stored: Date, Time, Wind direction, Temperature in deg. C
 (NOTE: temperature is at the logger, not the sensors)
 Average wind speed for sensor 1 in m/s
 Max wind speed for sensor 1 in m/s
 Standard deviation for wind sensor 1
 Average wind speed for sensor 2 in m/s
 Max wind speed for sensor 2 in m/s
 Standard deviation for wind sensor 2
 Logging interval: 1 minute or 10 minutes (only!)

  POWER  Power is provided by two Type C batteries
  DIMENSIONS  80mm X 185mm X 56mm Comes in IP-rated weatherproof enclosure.
  Maximum power consumption  6 Watts
  Ambient temperature range  0 - 70 degC
  Storage temperature range  -20 to +85 degC Ambient
  Dimensions  11 in (280 mm) overall, with the head tilted flat
